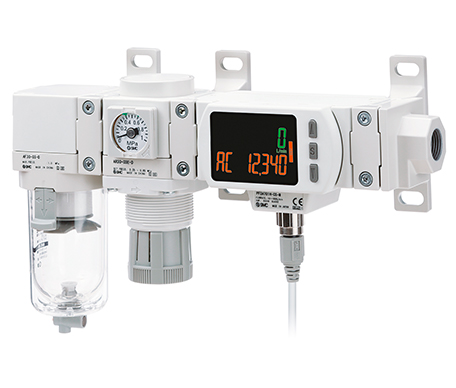

Digital Flow Switch for Large Flow Serier PF3A#H(-L) Produktbeskrivelse Katalog med egenskaber og specs (EN) Digital Flow Switch for Large Flow Applicable fluid: Air, N2, Ar, CO2 [New] 500 L/4000 L/8000 L types have been added to the modular type [New] The display range has been expanded. (1.5 times the rated flow range) [New] Accumulated pulse conversion value: Select from 4 types based on the flow range [New] Accumulated pulse width: Select a setting between 50 to 100 ms [New] A wide range of flow measurement is possible with 1 product Supports the IO-Link communication protocol. Katalog over funktioner
Stainless Steel Cylinder/Non-adjustable Air Cushion Type Serier HF2A-CG5 Produktbeskrivelse Katalog med egenskaber og specs (EN) Stainless Steel Cylinder/Non-adjustable Air Cushion Type Equipment for the Food Manufacturing IndustryAll stainless steel specifications (External parts: Stainless steel 304)4 times better durability in environments where it may come into contact with water dropletsNon-adjustable air cushionMounting interchangeability between the stainless steel cylinder, CG5-S series. Katalog over funktioner
Angle Seat Valve / Air Operated Type Serier JSB Produktbeskrivelse Katalog med egenskaber og specs (EN) Angle Seat Valve / Air Operated Type High pressure type has been added [New]Low pressure loss due to angle seat structure!Long service life: 10 million cycles (Air, Water), 3 million cycles (Steam)Large flow rate A large flow rate is possible due to the optimized flow channel shape (Cv factor: approx. 2.5 times) Compact: Height 166 mm (Port size: 1") Abundant series variations of 7 sizes All-in-One (Stainless steel 316L equivalent) Air, Water, Steam. Katalog over funktioner
Magnet Buffer Serier ZP3B#M Produktbeskrivelse Katalog med egenskaber og specs (EN) Magnet Buffer Stable buffer reaction force during strokeAdsorbs workpieces with different heights, Reduces the impact applied to a workpieceLow particle generation No particle generation due to the friction of a spring (spring-less structure)Non-rotating Reduces rotation by 4-pole magnetsCopper and zinc-freeCompatible with secondary battery manufacturing processes. Katalog over funktioner
Suction Cup Serier ZP3C Produktbeskrivelse Katalog med egenskaber og specs (EN) Suction Cup Material: FS61 (Fluoro-based rubber) improves abrasion resistance ∗ More than 4 times the abrasion resistance of SMC's urethane suction cupsReduced suction of foreign matter, such as paper particles, due to mesh filter Can be replaced without tools2.5-stage bellows type Optional inner ring and retainer. Katalog over funktioner
3-Screen Display High-Precision Digital Pressure Switch Serier ZSE20#(F)/ISE20# Produktbeskrivelse Katalog med egenskaber og specs (EN) 3-Screen Display High-Precision Digital Pressure Switch A low differential pressure range type has been added to the 20A series [New]An M12 connector type has been addedA low pressure range type has been addedIntegrated R1/8 fitting with bottom wiring entryVisualization of settingsSimple 3-step settingEasy screen switchingIt is possible to change the settings while checking the measured valueDelay time:1.5 ms or lessIO-Link compatible. Katalog over funktioner
3-Port Solenoid Valve Modular Type/Residual Pressure Release Valve Serier VP346E/546E/746E/946E Produktbeskrivelse Katalog med egenskaber og specs (EN) 3-Port Solenoid Valve Modular Type/Residual Pressure Release Valve Can be connected to F.R.L. units (AC-D series)Allows for space saving and reduced piping laborFlow rate characteristics [dm3(/ s·bar)]VP346E：4.2VP546E：7.5VP746E：12.6Effective area mm² VP946E：234 A model with a soft start-up function is also available Power consumption: 0.35 W (Without light) Features a check valve built into the pilot flow path (Supports pilot pressure drops caused by pressure fluctuations on the inlet side). Katalog over funktioner
Rotary Actuators Serier CRB/CDRB Produktbeskrivelse Katalog med egenskaber og specs (EN) Rotary Actuators A double vane type has been added for sizes 10 to 40. [New]Features a compact body with a built-in angle adjustment unit and auto switch unit (Size: 20, 30, 40)Overall length: 44 % shorter, Weight: 48 % lighterPiping, wiring, and angle adjustment can be performed on the same side for easier mountingEasy-to-adjust start and end positions with the angle adjustment bolts (as standard)The position of the chamfered portion of the shaft can be easily checked using the rotating angle indicator (Only for the CDRB with auto switch)Each of the units below for the CRB2 series can be mounted to the CRB series. Katalog over funktioner
Stainless Steel Throttle Valve with One-touch Fittings In-line Type Serier HF2B-ASG-#TV Produktbeskrivelse Katalog med egenskaber og specs (EN) Stainless Steel Throttle Valve with One-touch Fittings In-line Type Improved corrosion/heat resistance with the all stainless steel exteriorPossible for use in environments such as high temperature, water splashing, and where copper and zinc cannot be usedMaterial: Stainless steel 316 * FKM (Seal)Max. operating temperature: 150 °CNSF H1 greaseFluid: Air, Water, N2Equipment for the Food Manufacturing Industry HF2B- Series. Katalog over funktioner
